CS-12 and CS-20

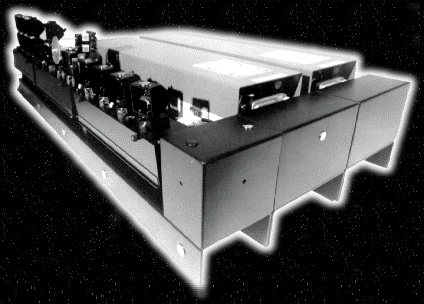

The CS-12 (pictured above with a dual-laser light-source) accommodates a maximum of twelve laser output positions, the CS-20 offers a maximum of twenty. The laser output path is typically built up in groups of four, each section independently rotatable on pillow blocks. This allows effects to be pointed anywhere, high or low. Each laser output position can accommodate an effects module.

Projector components for CS-12:

  • 52" Laser Mounting Channel
  • 52" Section Mounting Channel
  • 3 - four position sections
  • 20 - beam positioners
  • 20 - 4" bounce mirrors w/precision adjust
  • 180° diffraction fan
  • Diffraction wheel motor (Lumia)
  • MIDI projector controller
  • MIDI to analog interface (MIDIana)
  • Electronics enclosure
Projector components for CS-20:

  • 84" Laser Mounting Channel
  • 84" Section Mounting Channel
  • 5 - four position sections
  • 36 - beam positioners
  • 36 - 4" bounce mirrors w/precision adjust
  • 180° diffraction fan
  • Diffraction wheel motor (Lumia)
  • MIDI projector controller
  • MIDI to analog interface (MIDIana)
  • Electronics enclosure


CS-12/CS-20 Projector Options:

  • XY/RGB Module (Scanner/PCAOM syetem - requires graphics system)
  • Dual RGB section (Integrates two XY/RGB modules)
  • 4-Position section w/4 beam positioners
  • Beam positioner modules
  • Lumia effect modules
  • Fiber-remote XY scan head w/3 scan glasses, fiber positioner, 30m fiber
  • LD Pro or Basic (3D laser graphics systems) w/ Computer
  • LD Intro (2D laser graphics system)
  • Modified ADAT Digital Tape Deck (Taped Playback Only graphics system)


CS-12/CS-20 Laser Options:

CS-12/4K
Includes Coherent Star PL 4-watt water-cooled Argon/Krypton laser.
Heat exchanger optional*

CS-12/6A
Includes Coherent Star SL-A6 6-watt water-cooled Argon laser.
Heat exchanger optional*

CS-12/8K
Includes TWO Coherent Star PL 4-watt water-cooled Argon/Krypton laser.
Heat exchanger optional*

CS-20/13K
Includes Coherent Sabre PL 13-watt water-cooled Argon/Krypton laser.
A water-to-water heat exchanger is included

CS-20/30A
Includes Coherent Sabre SL-A30 30-watt water-cooled Argon laser.
A water-to-water heat exchanger is included

CS-20/26K
Includes TWO Coherent Sabre PL 13-watt water-cooled Argon/Krypton laser.
A water-to-water heat exchanger is included

*For Coherent Star lasers, the following heat exchanger options are available:

  • Coherent LP-20 - Water-to-water heat exchanger (requires external water supply)
  • Coherent LP-40 - Water-to-water heat exchanger for two Star lasers (requires external water supply)
  • Coherent LP-20 - Water-to-air closed-loop, recirculating chiller (Self-contained water, requires ventilation)
