CSL and CSX

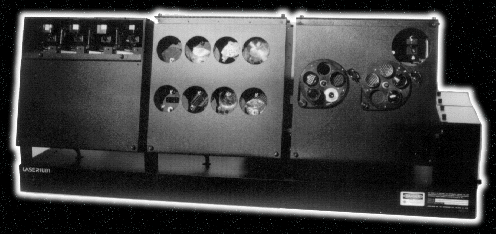

CSL (pictured above) and CSX projector configurations are the standard and enhanced LASERIUM show systems. Both feature an Input Section with RGB Full-Color Scan Head and two 5-position Lumia Turrets; an 8-position Lumia Section; and an RYGB (red-yellow-green-blue) Scan Section with four X-Y Scan Heads -- the most favorable arrangement for 3D shows featuring ChromaDepth™ 3D glasses, which are available as an option. The CSL is powered by a 4-watt full-color white-light laser.

The CSX is our top-of-the-line and is the most capable laser show projector in the world. It is the only projector able to completely fill a dome screen with complex imagery from up to nine high-speed X-Y Scan Heads and offer a variety of aerial beam effects - all powered by two 4-watt full-color lasers. Its optical effects capability includes 18 different lumia (laser cloud) effects and 18 Scan Glass image modifiers, for the widest effects variety - by far - available anywhere. The CSX is therefore capable of presenting the most advanced and sophisticated LASERIUM shows and it comes with eight weeks free lease of two shows. The system package also includes four ADAT Digital Decks for Automated playback, two software systems with Pentium computers and MIDI Controllers (for show playback and show production), and a separate Helium-Neon Laser System with high-speed X-Y Scan Head (for offline show production).
CSX

Projector components for CSL:

  • 52" Laser Mounting Channel
  • 52" Section Mounting Channel
  • Input Section with RGB scanner and two lumia turrets (rightmost in picture above)
  • 4 Scanner Section (R,Y,G,B) (leftmost in picture above)
  • Lumia Section (middle in picture above)
  • 3 Modified ADAT Digital Tape Decks
  • 1 SMPTE/MIDI Interface
  • 1 MIDI Controller
  • 1 Electronics Enclosure
  • 1 Coherent Star PL 4-watt White-Light Laser System
Projector components for CSX:

  • 2 52" Laser Mounting Channel
  • 2 52" Section Mounting Channel
  • Input Section with RGB scanner and two lumia turrets (rightmost in picture above)
  • 4 Scanner Section (R,Y,G,B) (leftmost in picture above)
  • Lumia Section (middle in picture above)
  • 4 Modified ADAT Digital Tape Decks
  • 1 SMPTE/MIDI Interface
  • 1 MIDI Controller
  • 1 Electronics Enclosure
  • 2 Coherent Star PL 4-watt White-Light Laser System
  • 4 Aerial Beam Positioners
  • 3 Fiber Launchers
  • 3 Fiber Remote RGB Scan Heads with 3 Scan Glasses each and up to 60m Precision Fiber Cable Each
  • 1 Diffusion DF-50 Hazer with Fan
  • 1 LD Pro Software System w/PC and Graphics Tablet
  • 1 Offline Projector with:
    • Helium-Neon or Diode Laser
    • LD Pro Software System as above
    • MIDI Controller
  • 8 Weeks Free Show Lease of 2 Shows

CSL/CSX Cooling Options

CSL
A water-to-water heat exchanger (Coherent LP-20) or recirculating chiller (Coherent PP-12)

CSX
A heat exchanger for 2 lasers (Coherent LP-40) or 2 chillers (Coherent PP-12)
