CS1

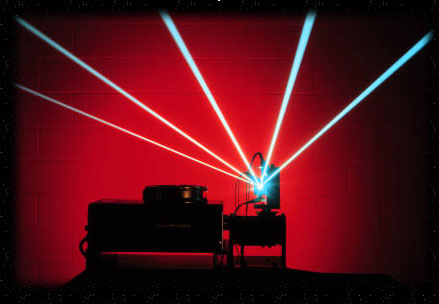

CS-1 brings top quality and flexibility to compact laser projectors. Weighing only 25 pounds and measuring only 20 x 9 x 13 inches, the projector head features a 250 mW blue/green forced-air-cooled argon laser that can run on 110 or 220 VAC. By utilizing the high optical efficiency of scanner-blanking, the CS-1 offers the brightest images and aerial effects possible with this laser. Two axes of scanner head adjustment allow most challenging staging situations. Drive electronics are housed in a separate 3U high rack-mountable enclosure to simplify installation. Compact size, low cost, and great monochrome graphic ability at 30k pps ILDA tuning make the CS-1 the logical choice for the budget-minded buyer.

Projector components for CS1:

  • 1 Short Projector Base
  • 1 1-Position Section
  • 1 X-Y-I Scan Head
  • 1 Driver Enclosure with Geometric Corrector (19 x 12.5 x 5.5 inches)
  • 1 Laser Physics 250 D Argon Laser System (Air-Cooled)

Control Options

  • ADAT Digital Tape Deck
  • LD Intro or LD Basic Graphics System
